First and foremost... no installation is
required!

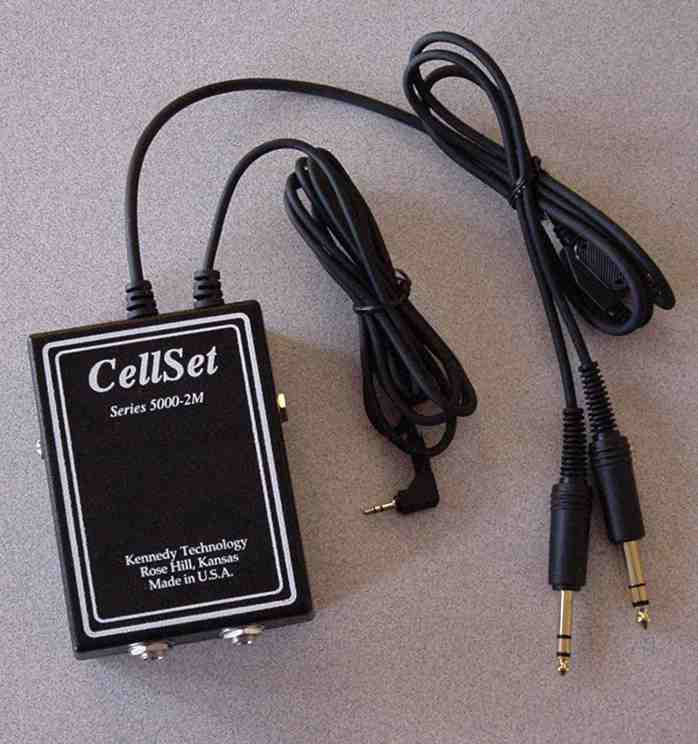

GA5000-2M plugs in line between your headset and panel. There are plugs and cord sets to connect it to your cellular telephone, auxiliary audio/music source (e.g. MP3 player) and the plane's cigarette lighter receptacle. GA5000-2M can also operate off its 9 Volt battery (standard type).
In the absence of cell phone or auxiliary audio, GA5000-2M sleeps. In this state, it pulls only micro-amperes of current and can remain asleep for over 10,000 hours if running on it's 9 Volt battery. Once audio is detected from either the cell phone or the auxiliary audio source, GA5000-2M wakes up to amplify those sources and sends them to your headphones. Once those audio sources become silent, GA5000-2M goes back to sleep.
GA5000-2M prioritizes audio: If you are listening to music, any incoming cell phone or panel audio will make GA5000-2M mute the auxiliary audio and give priority to those sources. Panel audio will not mute cell phone audio nor will cell phone audio mute panel audio.
In the case of a panel failure, GA5000-2M
will bias your headset microphone and allow you to make
and receive phone calls.
GA5000-2M can be configured for one of the 3 major cell phone audio connection styles. These configurations are:
UNI - For phones with a universal, 2.5 mm diameter, three conductor headset jack. This includes all Motorola, most Sanyo, Samsung, and Kyocera phones. Many Ericsson and Nokia phones do not have this connector, but may use an adapter to connect to this CellSet.
NOK4 - For Nokia phones that list headset item HDC-5P (2.5 mm,
four conductor connector) as an accessory. Not compatible
with other phones via adapters.
SR22 - For Samsung R225 and R229 phones ( 2.5 mm, four conductor with outer ring). Not compatible with other phones via adapters.
HS830 - For use with Motorola's HS-830 Bluetooth adapter.
Please specify your phone make and model so that the proper configuration and/or adapter is added to the order.
Download Assembly Drawing as .pdf
Cost: $319.95 plus shipping. 30 day money-back guarantee!
Not compatible with Bose Headsets when Bose control box set to "MONO"
