A note on using CellSet with Garmin's GMA 35 series audio panel:
GMA 35/350(H) will disable the headphone audio outputs (within a few seconds) if it detects the L/R signals are shorted to ground or to each other. This will occur with headsets that have a Mono/Stereo switch and the switch is set to Mono. (Bose 10X, Bose A20, Lightspeed Zulu). Ensure that the switches are set to Stereo (often in the battery compartment).
an impedance that Garmin considers a short (60 Ohms). To prevent
this condition, the CellSet requires the addition of a resistor to the
circuit board. Please indicate if you are using this panel, and
the CellSet can be modified to be compatible.

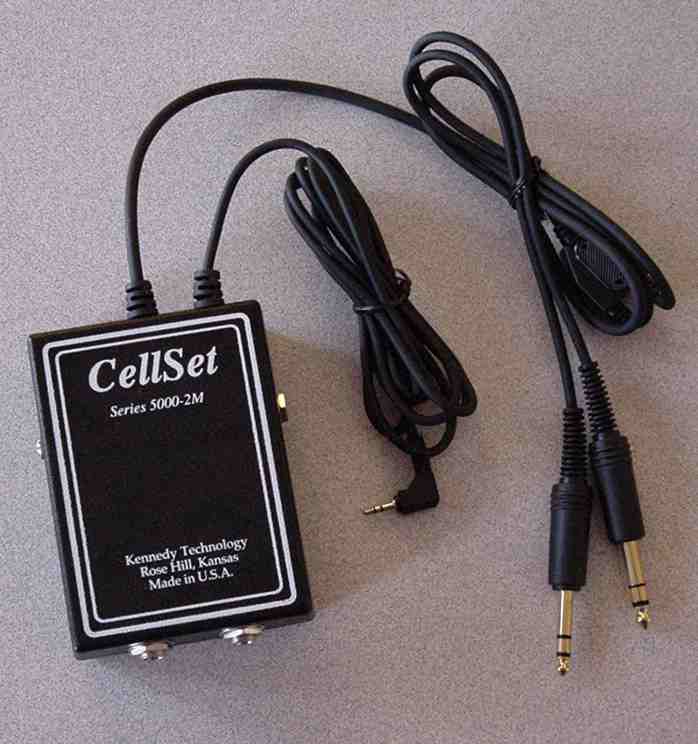

Simply plug a CellSet between your headset and intercomor radio, then into the headset jack on your cellular phone.
Talk on the phone through your headset. No installation is required
For use with dual plug, high impedance (300 ohm, electret mic) general aviation headsets. Compatible with stereo or mono headsets and audio systems. Runs on 9 volt battery. Auto on/off for maximum power conservation.
Will operate even in the event of
Available with a variety of headset connectors.
A CellSet with
Music input and auto-mute!
For use with dual plug, high
ohm, electret mic) general aviation headsets. Compatible with
stereo or mono headsets and audio systems. Runs on 9 volt battery
or ships power! Auto on/off for maximum power conservation. Will
operate even in the event of toal comm system failure.
For use with single plug, high
electret mic) helicopter headsets. Audio output tuned for maximum
efficiency. Runs on 9 volt battery or ship's power via cigarette
lighter plug. Connects to CD player or Walkman. All cables included.
Identical to H/9B/HDT, except for hanging loop.
For use with Bose, panel mount,
on ship's power from panel mount connector. Connects to CD player
or Walkman (cable included) Single user operation.
Available with Series I
connectors (add $40.00)
